A workstation transfer succeeds only when the load, route, controls, clearances, and landing point are planned as one lifting cycle. By the end, you will be able to map that cycle, specify a crane from real operating conditions, compare it with other handling equipment, and prepare the checks needed before commissioning.
Key takeaways
- Centre the load beneath the hoist before lifting.
- Check SWL, span, lift height, and route clearances before selection.
- Choose gantry or overhead travel based on building structure and layout.
- Request inspection records, test certificates, drawings, and maintenance instructions.

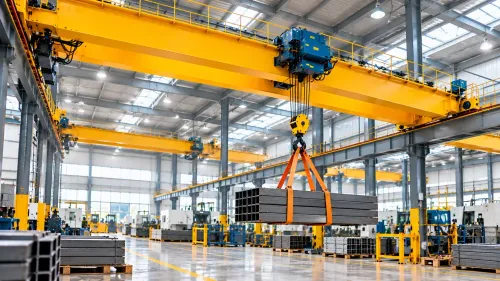

How an electric crane moves a load from pickup to release
Move the load only after inspection, centring, control testing, and route clearance. The correct electric overhead crane workstation handling sequence is:
1. Confirm the load weight, including slings, hooks, spreader beams, magnets, grabs, and fixtures. Inspect the load for loose parts, then centre the hook directly above its lifting point.
2. Check slings for cuts, broken wires, stretched links, damaged eyes, and unreadable tags. Confirm the lifting fixture is locked, rated, and suited to the load; attach it without twists or sharp-edge contact.
3. Test each pendant or radio-remote direction button, speed selection, hoist control, brake response, and emergency stop before lifting. Release and reset the emergency stop only after the controls respond correctly.
4. Hoist slowly until the sling is taut, pause, and confirm balance. Raise only high enough to clear the route; never side-pull with the trolley or bridge.
5. Travel the trolley and bridge at a controlled speed, keeping the load within your view. If visibility is blocked, use one trained signal person; keep every person out of the suspended-load path.
6. Use smooth variable-frequency acceleration and braking to reduce swing, wheel slip, shock, and positioning errors. It does not replace load-centering, training, or disciplined speed control.
7. Position above the destination, lower gradually, confirm full support, then slacken and remove the lifting gear. Upper and lower limit switches protect against overtravel; they are not production stopping devices, so do not run into them.
How to size the crane and clear its travel route
A crane can serve every workstation only when its capacity, hook reach, and travel clearances match the complete route. Size a heavy load movement crane from the heaviest planned lift, not the average load, and verify the pickup and set-down points before approving the layout.
1. Calculate the lifted load: product, slings, spreader beams, magnets, grabs, hooks, and fixtures. Add allowances for eccentric loading, sling angles, acceleration, braking, and dynamic effects. The working load is governed by the lowest rating among the crane, hoist, hook block, sling, and below-the-hook device; lift geometry can reduce it further.
2. Survey the full route and record aisle width, columns, racks, machines, door heights, lighting, sprinklers, utilities, adjacent cranes, floor-level traffic, and personnel exclusion zones. Draw a hook-approach map showing the hook centre’s clearance at every pickup and set-down point. A nominal span measurement cannot reveal that a wall, rack, or machine blocks the hook.
3. Check Ahmedabad conditions before specifying equipment for factory electric crane applications: dust entering panels and motors, heat affecting electrical components, monsoon water, blocked drainage, corrosion, exposed steelwork, and protection around electrical panels. Provide drainage that prevents standing water at rails and foundations, and confirm environmental ratings rather than assuming indoor equipment suits semi-open service.
Reject the layout if the hook cannot reach both stations without side loading, obstruction, or people entering the suspended-load path.
How to choose the crane arrangement for your factory layout
| Option | Route flexibility | Floor obstruction | Load control | Installation effort | Repeatability |
|---|---|---|---|---|---|
| Bridge crane | Fixed rectangular route | Minimal; uses overhead runway | Excellent for vertical lifts | High; needs verified supports | High |
| Gantry crane | Covers a defined floor route; movable legs | Legs and rails occupy floor space | Excellent, but loaded travel needs specific design | Moderate to high; check floor loads and anchorage | High |
| Jib crane | Local swing around one column | Base or column obstructs area | Good at one station | Moderate | High locally |
| Forklift | Flexible, including turns | Vehicle traffic and floor clearance | Lower for suspended or unstable loads | Low | Medium |
| Pallet truck | Short floor routes only | Occupies aisles | Limited to palletized loads | Low | Medium |
| Conveyor | Fixed continuous route | Permanent line and transfer points | Good for consistent units | High | Very high |
For factory electric crane applications, use lifts per hour, average and peak travel distance, operating hours per day, load spectrum, and required design life—not maximum weight alone. Select span and runway length from workstation coordinates; hook height and lifting height from the highest obstruction and required clearance; hook approach from pickup and set-down reach.
Set trolley and bridge speeds for distance and cycle time, with pendant or radio control, variable speed, and suitable power collection.
Check ISO 4301-1 and equivalent Indian duty classifications against actual utilization and load spectrum. A single-girder overhead crane is unsuitable without verified runway support, protection from outdoor exposure, regular pickup points, enough use to justify installation, or routes around corners.
Choose a gantry when no runway exists, but verify wheel loads, floor flatness, movable-leg clearance, anchorage, vehicle and pedestrian control, and wind restraint. Never travel with a suspended load unless the crane is specifically designed and the procedure authorises it.
What Indian safety and inspection controls must be ready before use
Before electric overhead crane workstation handling begins, the owner must keep a commissioning or load-test record, permanently mark the crane’s rated capacity, and document the hoist, runway, controls, and safety-device checks. The marked capacity does not override the lower rating of the hoist, hook, sling, or lifting device.
1. Complete and record each pre-use check: inspect hooks and latches, wire rope or chain, brakes, pendant for damage, radio batteries, direction controls, emergency-stop operation, limit devices, end stops, abnormal noise, and visible damage. A limit switch protects against overtravel; it is not a routine production stop.
2. Arrange periodic examination at an interval set by service, severity, and environment. Examine welds, beams, sheaves, drums, wheels, rails, fasteners, electrical equipment, and foundations, then retain inspection, repair, test, and training records.
3. Train operators and signal persons in rated-capacity limits, signals, radio use, emergency stopping, and fault reporting. Issue maintenance instructions covering lubrication, brakes, ropes or chains, controls, and isolation before repair.
4. Mark the suspended-load exclusion zone and prohibit people beneath or within its path. Control pedestrian and vehicle access during every transfer.
5. Ask a qualified engineer or safety professional to verify the Factories Act, applicable Gujarat rules, the Occupational Safety, Health and Working Conditions Code requirements in force, and IS 3177 and IS 807. One certificate is not universal legal compliance.
What to request from an Ahmedabad crane supplier before ordering
Capacity alone does not prove that an electric crane for moving heavy loads in Ahmedabad can reach both workstations. Request these measurable proposal items:
| Ask for | Why it matters |
|---|---|
| General-arrangement drawing: span, runway elevation, lift, hook approaches, clearances, wheel loads, end stops, floor or column reactions | Proves the hook reaches pickup and set-down points |
| Duty classification and load spectrum | Matches cycles, operating hours, and design life |
| Motor, brake, drive, pendant or radio details | Reveals control, stopping, and visibility limits |
| Power-collection arrangement | Confirms safe supply along the complete runway |
| Structural design basis | Covers runway beams, rails, alignment, foundations, and crane reactions |
| Dust, rain, drainage, corrosion, and enclosure protection | Addresses Ahmedabad dust and monsoon exposure |
| Commissioning and load-test documents | Records acceptance before production use |
| Manuals, spare-parts list, service response terms, and maintenance schedule | Defines ownership after installation |
Ask who surveys the existing building and who accepts responsibility for runway beams, foundations, rails, alignment, end stops, and electrical supply. A buyer comparing Derrick Engi Works Private Limited with another crane manufacturer Ahmedabad proposal can judge deliverables instead of trusting a generic capacity figure.
Approve only when the checklist is clear:
- Route proven and hook reaches both stations
- Duty matches actual cycles
- Capacity includes slings, spreaders, hooks, and fixtures
- Controls suit operator visibility
- Installation preserves traffic routes and suspended-load exclusion zones
Frequently asked questions
How does an electric crane move a load from pickup to release?
Inspect the crane and rigging, centre the hook over the load, perform a controlled test lift, travel along a cleared route, lower the load steadily, and release the rigging only after it is stable.
How do you size an electric overhead crane for workstation handling?
Confirm the maximum load including lifting accessories, required safe working load, span, lift height, travel distance, duty cycle, lifting speed, and building clearances.
When should a factory choose an overhead crane or gantry crane?
Choose an overhead arrangement when the building can support runway beams and you need clear floor space. Choose a gantry arrangement when independent legs and floor rails suit the layout or building structure.
What safety and inspection controls must be ready before crane use in India?
Keep the crane’s safe working load marking, inspection and test records, maintenance log, operator controls, limit switches, emergency stop, brakes, hooks, wire rope, and lifting-accessory records ready for review.
What should you request from an Ahmedabad crane supplier before ordering?
Request a GA drawing, load and duty specification, runway or leg details, electrical schematic, test certificates, inspection documents, installation scope, warranty terms, spare-parts list, and operator and maintenance instructions.
