A workshop needs more than a crane rated for the heaviest load: it needs a lifting route that fits its floor, machines, doors, vehicles and production rhythm. By the end, you will be able to compare gantry cranes with other lifting options, check the critical dimensions and controls, and judge whether a supplier’s proposal suits your premises.
Key takeaways
- Choose a gantry crane when roof rails or structural columns are unavailable.
- Check floor capacity, rail alignment and wheel paths before installation.
- Size the girder for load, span, lift height and duty cycle.
- Compare supplier drawings, inspection records, service support and spare parts.
Why a gantry crane often fits an Ahmedabad workshop better than alternatives
A gantry crane solves the need to lift and position heavy components across several workstations without relying on roof columns or building-supported runway rails. Its bridge girder transfers the load through legs and wheels into the floor or runway rails, making it practical for rented premises and workshops where civil work is limited.
The search phrase “single girder gantry crane for benefits ahmedabad” points to independent floor support, easier relocation than a fixed overhead travelling crane and reduced structural demand on the building. The floor still must carry concentrated wheel loads, and the travel path must remain clear.
| Option | Main advantage | Limitation |
|---|---|---|
| Overhead travelling crane | Broad, unobstructed coverage | Requires building-supported runways and suitable columns |
| Forklift | Moves freely between areas | Consumes aisles and positions loads less precisely |
| Mobile crane | Handles occasional heavy lifts | Needs setup space, access and ground preparation |
| Chain block | Simple lifting at one point | Cannot serve multiple workstations |
| Fixed lifting point | Always ready at one location | Offers no wider coverage |
A workshop lifting crane benefits from freeing forklift routes and floor space, reducing manual handling, and placing dies, motors, steel sections and fabricated assemblies accurately.
A gantry is a poor choice where the floor is weak, badly uneven, or blocked by traffic and storage; rails, legs and suspended loads still need protected travel corridors and exclusion zones.
How the crane travels through the workshop and what the floor must provide
A gantry crane carries the load from the hook through the hoist and trolley, into the bridge girder, down the legs, and finally through wheels into floor tracks or runway rails.
End carriages support the girder and keep the wheels running along the rail gauge; a pendant control operates hoist and travel, while power arrives through the chosen electrical system.
Fixed or portable equipment depends on how often the lifting route changes.
| Option | Best fit | Limitation |
|---|---|---|
| Fixed gantry | One defined production bay | Relocation requires dismantling and realignment |
| Portable or adjustable gantry | Occasional work at different positions | Setup takes time and movement requires a controlled, level route |
A portable unit needs a floor free from steps, pits, debris and excessive slope. Check rail gauge, rail level difference, alignment, buffers, wheel condition and flange contact; misalignment causes skewing, wheel and rail wear, and higher drive current.
Reserve these areas before installation:
- Columns, doors and machine access
- Truck, forklift and pedestrian routes
- Crossings, hot-work zones and stored material
- Clear space around buffers and emergency exits
Festoon systems suit guided travel; cable reels manage a defined moving length; conductor bars need protected, correctly spaced collection equipment; trailing cables need a clear route. Keep every cable away from vehicles, sharp scrap, coolant and heat.
A floor survey and rail-alignment plan belong in the quotation. For a gantry crane for workshops ahmedabad, leaving wheel loads and alignment to installation day can turn a practical lifting route into an expensive correction.
How to size a single girder for the loads, dimensions and duty cycle
A single girder matches the workshop when its actual load pattern, dimensions and movement fit light-to-moderate service. Specify:
- Safe working load and load shape
- Span and lifting height
- Minimum hook approach at both ends
- Travel length and required headroom
- Bay dimensions and maintenance access
- Lifts per hour, average load spectrum and operating hours
The search phrase single girder gantry crane for benefits ahmedabad should not mean “cheapest crane.” Single-girder construction often uses less steel and weighs less than a comparable double-girder arrangement, simplifying transport and installation. Final cost still depends on span, concentrated wheel loads, wind exposure, runway construction and duty cycle.
| Construction | Strength | Trade-off |
|---|---|---|
| Single girder | Lower self-weight and structural demand | More limited capacity or span, with greater concern for deflection, vibration and headroom |
| Double girder | Higher expansion capacity and heavier-duty potential | More steel, weight, transport effort and installation demand |
Nominal span does not show usable coverage. The trolley, end carriages, pendant, columns, stored goods and service clearances reduce hook approach. Repeated near-capacity lifts, frequent starts and stops, long travel, or multi-shift operation require a higher duty classification than occasional light handling.
Require a dimensioned general-arrangement drawing before approval. It must show minimum hook height, side and end approaches, travel limits, load positions and maintenance access; otherwise the crane may fit the bay but fail to reach the work.
Which controls and records make workshop lifting dependable
Dependable lifting starts with a clearly marked rated capacity and working overload prevention. The upper limit switch is a protective device, not a routine positioning stop: stop hoisting before it operates.
Specify the hoist and travel brakes, upper and lower limit switches, travel limits, emergency-stop function, wheel guards, buffers, hook safety latch and operator controls separately.
| Control or method | What it prevents | Operator rule |
|---|---|---|
| Rated capacity and overload protection | Structural or motor overload | Never exceed the marked capacity |
| Brakes and limit switches | Runaway motion or over-travel | Test them; do not use limits for positioning |
| Wheel guards and buffers | Foot, rail and end-impact injuries | Keep rails and travel paths clear |
| Slinging and load movement | Shock and unintended swing | Do not side-pull, drag, snag, shock-load or lift off-centre |
Sling angle increases leg tension: a two-leg sling at 30 degrees from horizontal loads each leg more heavily than a vertical lift. Establish an exclusion zone below suspended loads, separate pedestrian and vehicle routes, and keep emergency access unobstructed.
These workshop lifting crane benefits disappear when forklifts, stored steel or gantry legs share an uncontrolled route.
- Request the declared duty classification, electrical schematics, motor and brake data, test documentation and maintenance instructions.
- For Indian applications, name the applicable edition of IS 3177 and IS 807; confirm applicability with a qualified designer or inspector.
Arrange competent-person examinations and maintain inspection, repair, test and defect records under applicable Gujarat factory-safety requirements. The file should show what failed, what was repaired, and when the crane returned to service.
How to compare a gantry crane supplier in Ahmedabad before ordering
A quotation is not proof of local capability. Ask where the girder and end carriages are manufactured, where the crane is load-tested, who installs and aligns the rails, and whether technicians and replacement parts are available in Ahmedabad.
A search for “single girder gantry crane supplier ahmedabad” or “gantry crane manufacturer odhav” should confirm whether the address is a factory, test facility, service base, or only a sales office.
Compare suppliers against the same evidence:
- Dimensioned general-arrangement drawing showing hook height, end approaches and maintenance access
- Wheel-load figures matched to your floor survey
- Load-test certificate and named inspection documents
- Electrical schematics, motor and brake data
- Spare-parts list covering wheels, brakes, contactors, festoon parts and wire rope
- Operating and maintenance manuals, operator training and warranty scope
- Installation, rail-alignment and breakdown-response arrangements
| Supplier type | What to verify | Risk if absent |
|---|---|---|
| Sales address | Factory, test site and service location are identified separately | Delayed commissioning or unclear accountability |
| Fabrication partner | Girder, end carriages and controls have traceable records | Inconsistent dimensions or difficult repairs |
| Local service partner | Ahmedabad technicians and stocked replacement parts | Long downtime after a fault |
“ As per IS” is weaker than naming the applicable editions of IS 3177 and IS 807, plus the inspection documents supplied. Derrick Engi Works Private Limited can be assessed alongside other bidders using this same floor, duty-classification, safety-control and after-sales checklist. Compare downtime, alignment, parts availability and ownership records—not only the initial quotation.
Related product

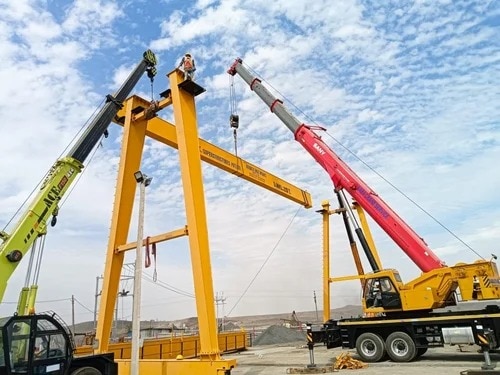

 | Eot Cranes Gantry Crane Single Girder Crane Manufacturer Derrick Engi Works Pvt. Ltd. is a reliable manufacturer and supplier of Gantry Crane Single Girder Cranes, designed for efficient... |
Frequently asked questions
Why does a gantry crane suit many Ahmedabad workshops?
A gantry crane carries its bridge on legs and wheels, so it does not require roof columns or building-supported runway rails. That suits rented premises and workshops where structural changes are limited.
What must a workshop floor provide for a gantry crane?
The floor must support the wheel loads without excessive settlement or cracking. Check concrete condition, wheel paths, rail alignment, obstructions, clearances and drainage before installation.
How do you size a single girder gantry crane?
Define the heaviest load, load dimensions, span, lifting height, travel distance, lifting speed and duty cycle. Include the hoist and rigging weight in the rated load calculation, then confirm headroom and end clearances.
Which records make workshop crane lifting dependable?
Keep the crane’s load chart, inspection schedule, maintenance log, test records, operator instructions and repair history. Record defects and remove the crane from service when a safety-critical fault appears.
How should you compare a gantry crane supplier in Ahmedabad?
Compare engineering drawings, rated capacity, duty classification, controls, safety devices, installation scope, testing documents, response times and spare-parts support rather than comparing price alone.
